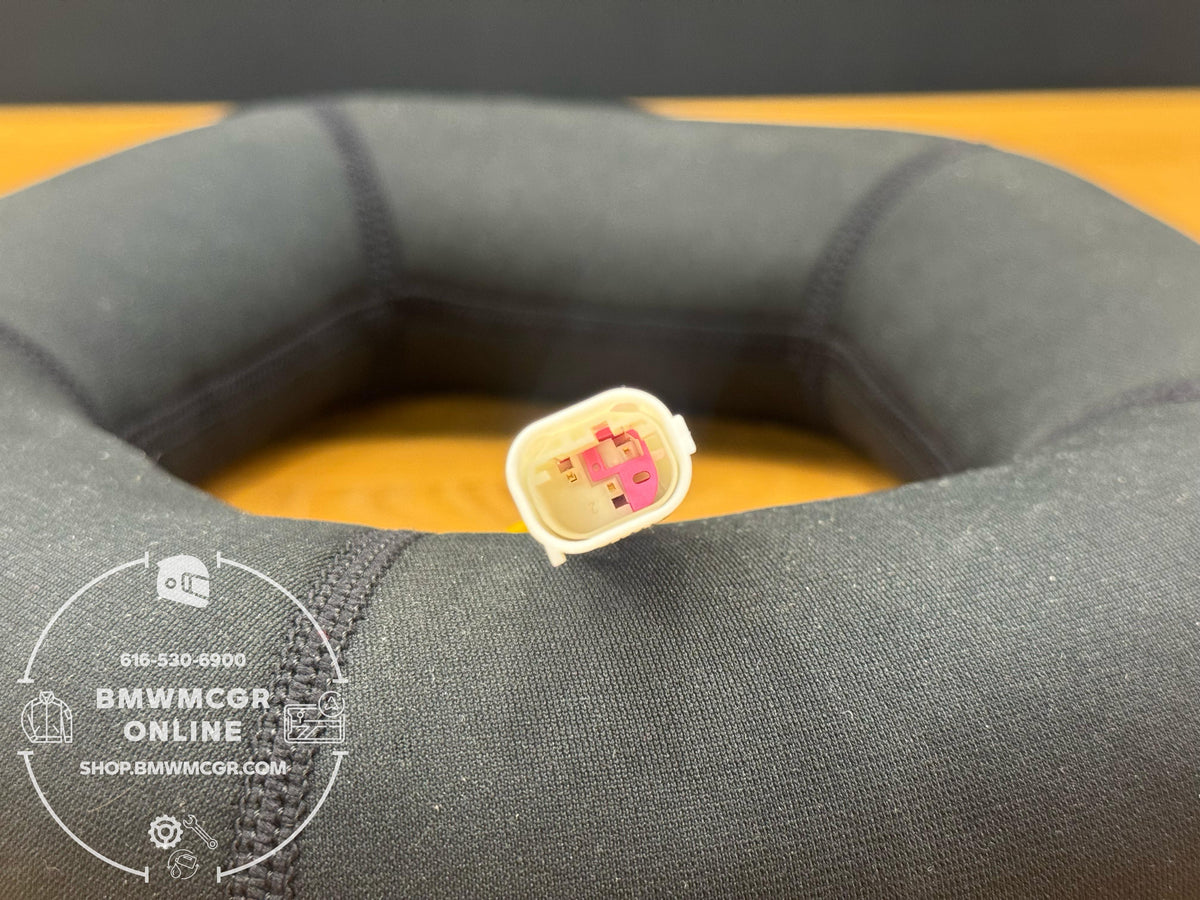

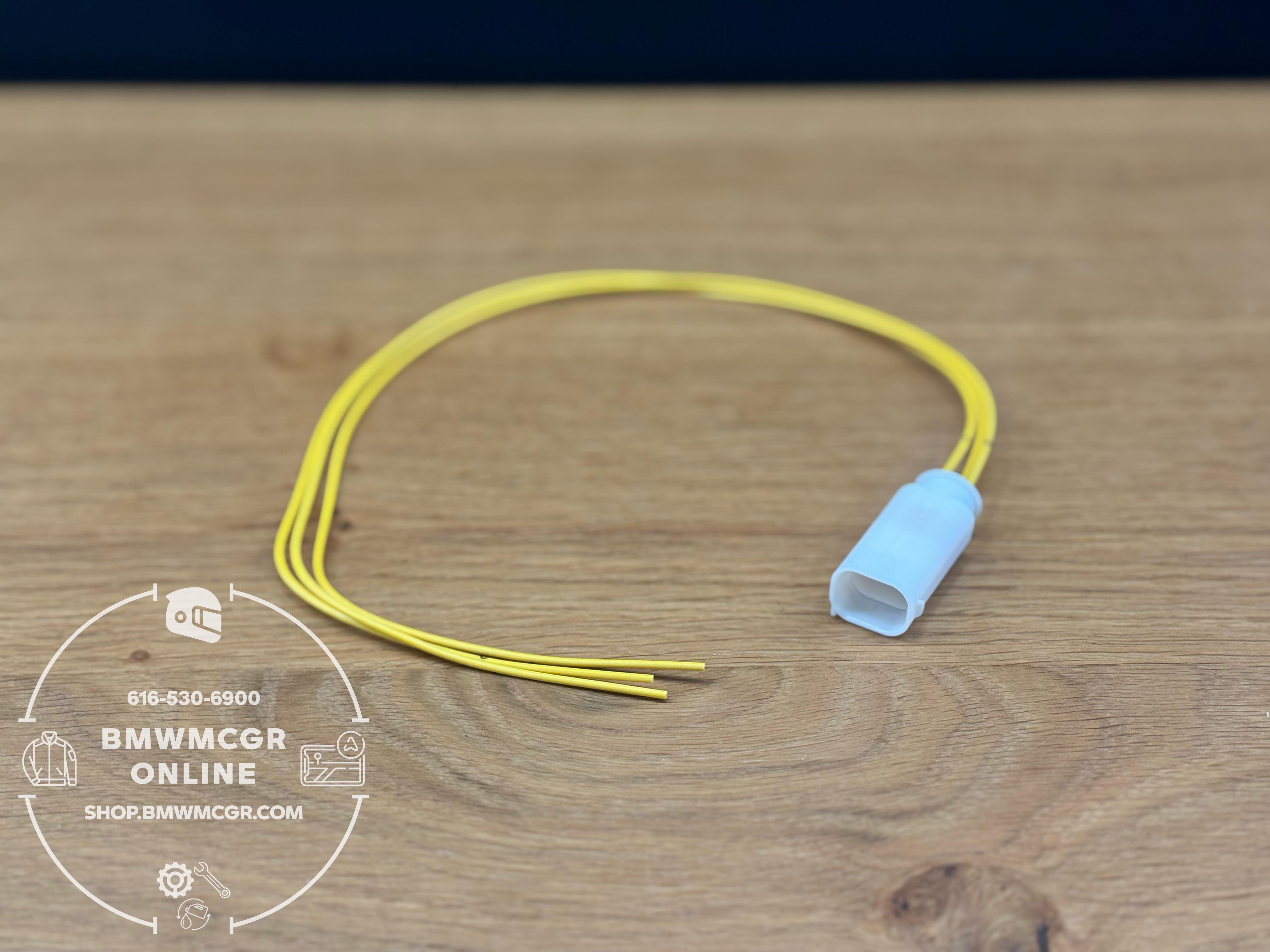

Factory plug to mate to accessories harness found on Can Bus models from 2005-2024.
This is where BMW would normally power a GPS for a BMW Navigator. You can use this harness to tie into factory power with out compromising your factory wiring harness.
This plugs in where factory Nav prep would be installed, you would be unable to use this with a factory BMW Nav cradle already installed on the motorcycle as this plug is the same location for power. If you wanted to swap to a Zumo XT etc, this would be the way to do it cleanly.

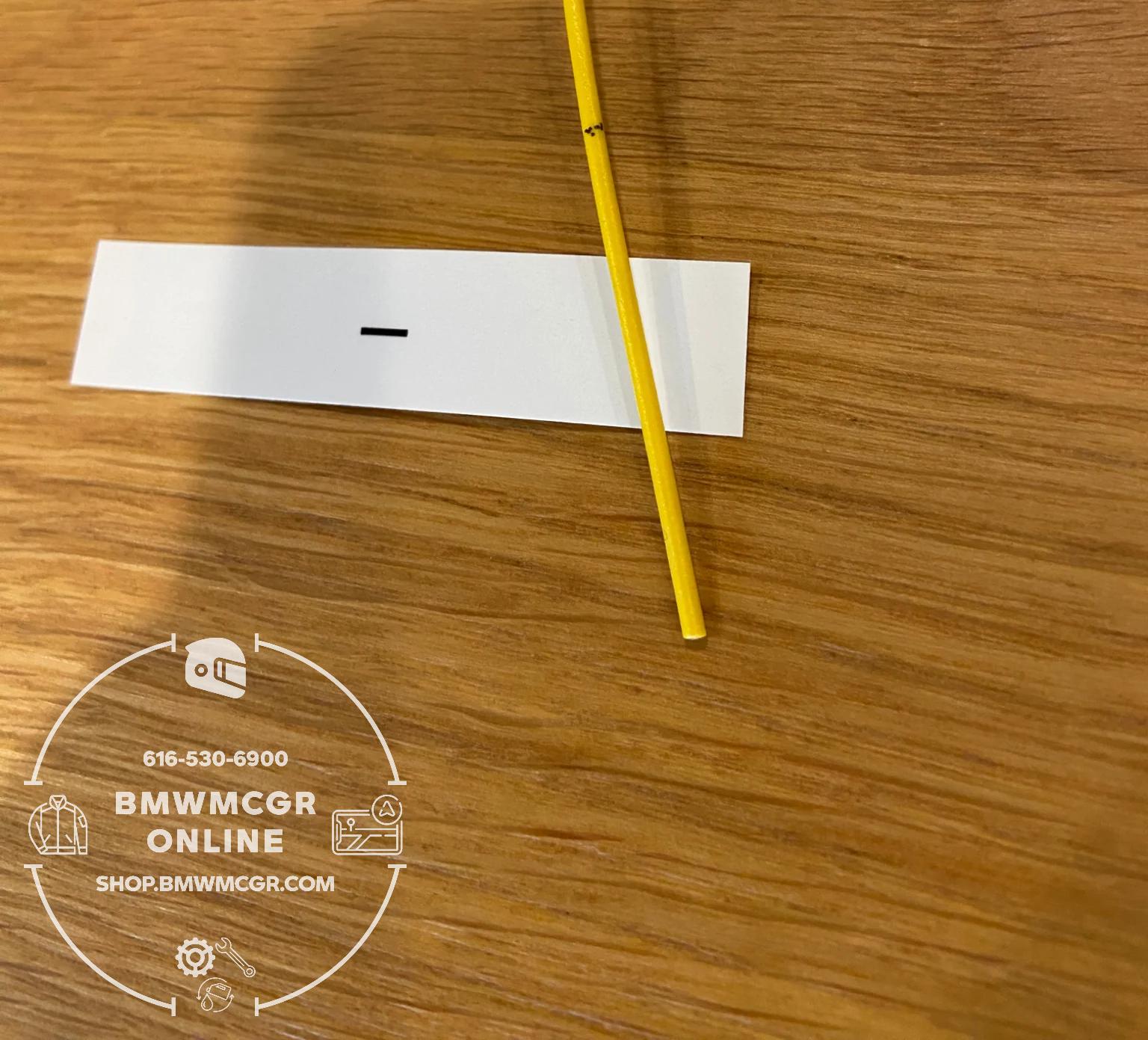

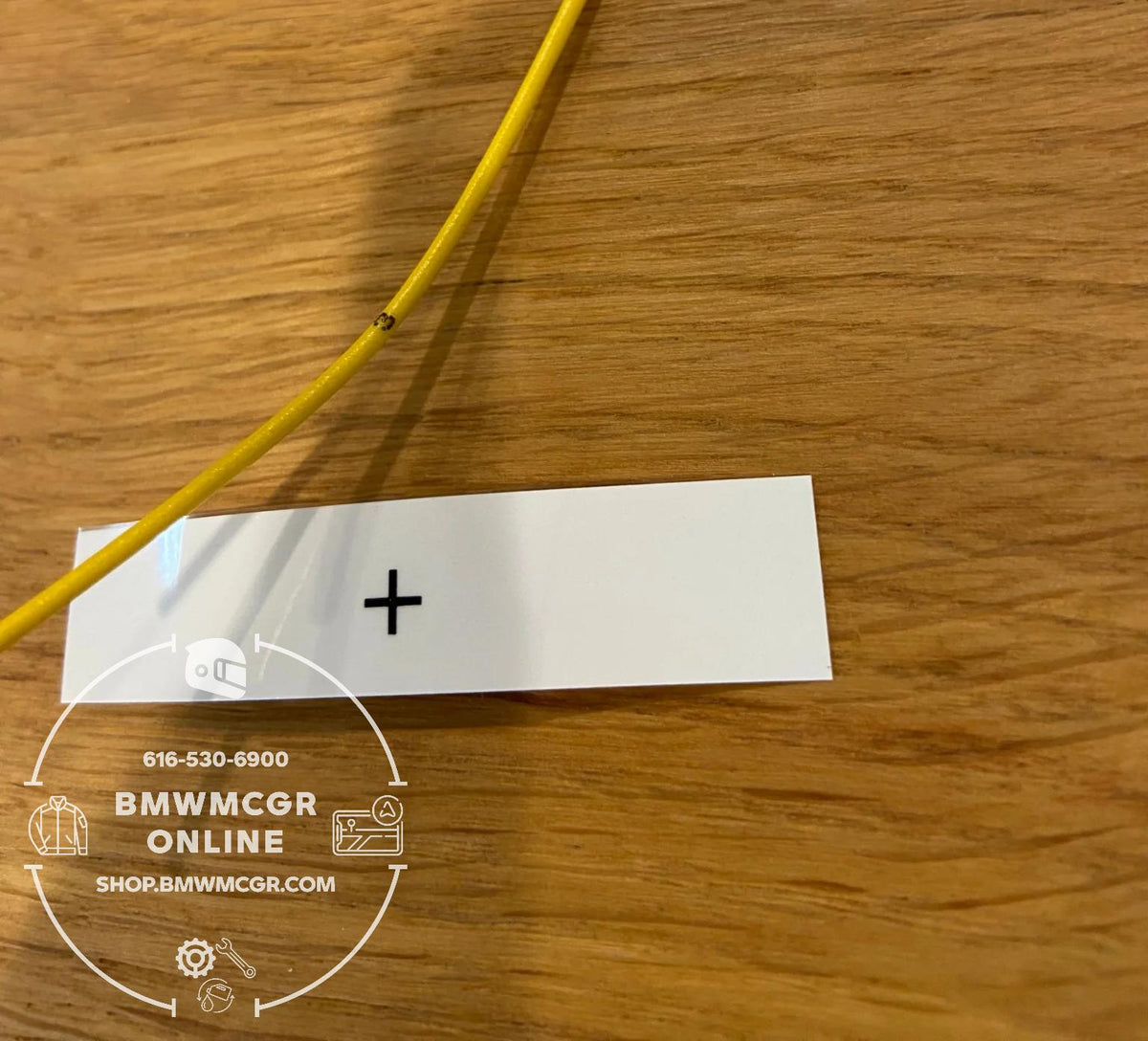

Pin 3 is a Hot lead and Pin 1 is Ground. Pin 2 will not be used for accessory installs.
R1200RT 2006-2018
R1200GS 2005-2018
R1200GSA 2006-2018
R1200R 2008-2018
R1200RS 2015-2018
R1250GS 2019-2023
R1250GSA 2019-2024
R1250R 2019-2025
R1250RS 2019-2025
S1000RR 2010-2026
S1000R 2014-2026
S1000XR 2014-2026
M1000R 2022-2026
M1000RR 2022-2026
M1000XR
F650GS Twin 2008-2011
F700GS 2011-2017
F750GS 2018-2024
F800GS 2008-2017
F800GS 2025-2026
F850GS 2018-2023
F900R 2020-2026
F900XR 2020-2026
K1600GT 2011-2026
K1600GTL 2011-2026
K1600B 2018-2026
K1600BGA 2018-2026
R1300GS 2024-2026
R1300GSA 2025-2026
R1300RT 2025-2026
R1300RS 2026
R1300R 2026
If you have a question of whether or not this will work for your application please call.
No returns on Electrical products.
